    SAE J30R10 Fuel Hose – Flexible Low Permeation Submersible Hose for Gasoline Diesel Ethanol

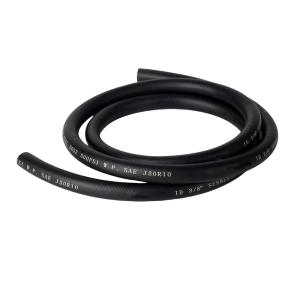

    SAE J30 R10 Submersible Fuel Hose

    Product Description

    High-Performance SAE J30 R10 Submersible Fuel Hose | Resistant to Gasoline, Diesel, Ethanol & E85 Fuels | Built for In-Tank Fuel Pumps
    Sizes Available: 1/8" to 1" | Aramid Fiber Reinforced | Continuous Immersion Fuel Hose


    About This Hose

    The SAE J30 R10 Submersible Fuel Hose is specifically designed for fuel pumps inside gas tanks. Unlike conventional hoses, this hose is capable of continuously handling fuel both inside and outside of the hose wall, making it ideal for fully immersed fuel applications.

    Engineered with FKM cover and strong aramid fiber reinforcement, it offers excellent resistance to fuel permeation, high temperatures, and aging.


    Main Features

    Continuous Fuel Handling
    Performs reliably when fully submerged, both inside and outside of the hose.

    Excellent Aging Resistance
    FKM outer cover ensures durability and extended service life in harsh conditions.

    Strong Aramid Fiber Reinforcement
    Same fiber used in bullet-proof vests, ensuring strength and no breakage.

    High Temperature Resistance
    Performs in environments up to +125°C (+257°F).

    Fuel Compatibility
    Suitable for gasoline, diesel, ethanol blends, and E85 fuels.


    Common Applications

    • Submersible fuel pump assemblies

    • Automotive and motorcycle fuel systems

    • Marine fuel tanks

    • Generator and industrial fuel storage systems


    Technical Details

    Certifications: SAE J30 R10
    Temperature Range: -40°C to +125°C
    Construction:

    • Inner Tube: Strong permeation resistance

    • Reinforcement: Aramid fiber (high tensile strength)

    • Outer Cover: FKM, excellent aging and ozone resistance

    Packaging: Coils, export cartons, or customized on request


    Hose Construction Chart

    LayerMaterialBenefits
    Inner TubeFuel-resistant compoundPrevents permeation, ensures durability
    ReinforcementAramid fiberHigh tensile strength, anti-burst
    Outer CoverFKMExcellent aging, ozone, and fuel resistance

    Size Specifications

    CodeSize (inch)I.D. (mm)O.D. (mm)Working PressureBurst Pressure
    PJ30R10-021/8"3.29.06.89 bar / 100 psi34.0 bar / 493 psi
    PJ30R10-033/16"4.811.06.89 bar / 100 psi34.0 bar / 493 psi
    PJ30R10-041/4"6.412.76.89 bar / 100 psi34.0 bar / 493 psi
    PJ30R10-055/16"7.914.06.89 bar / 100 psi34.0 bar / 493 psi
    PJ30R10-063/8"9.516.06.89 bar / 100 psi34.0 bar / 493 psi
    PJ30R10-081/2"12.720.06.89 bar / 100 psi28.0 bar / 406 psi
    PJ30R10-105/8"15.924.06.89 bar / 100 psi28.0 bar / 406 psi
    PJ30R10-123/4"19.029.06.89 bar / 100 psi28.0 bar / 406 psi
    PJ30R10-161"25.435.06.89 bar / 100 psi28.0 bar / 406 psi

    Conclusion

    If you need a reliable, durable, and fully submersible fuel hose, the SAE J30 R10 is the proven solution. Designed to handle gasoline, diesel, ethanol blends, and E85 fuels in the harshest conditions, it ensures maximum safety and performance for automotive, marine, and industrial applications. Bulk orders and custom branding available.
