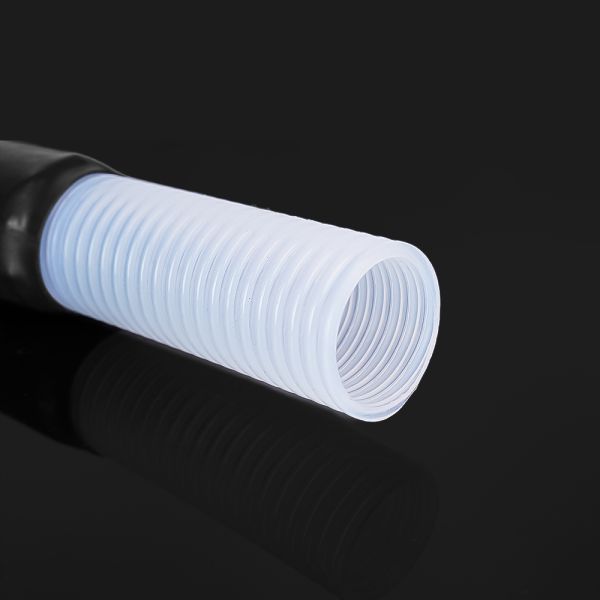

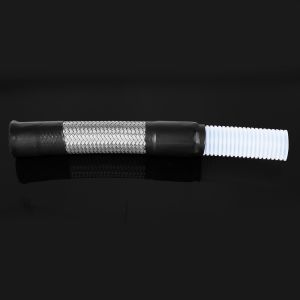

    Smooth Bore Covoluted PTFE Hose

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : 301
    Certification : FDA, RoHS, REACH
    Price : Negotiation
    Payment Terms : T/T, L/C, Paypal
    Supply Ability : 250,000 meters per month
    Delivery Time : Usually in 10-20 days after received your payment
    • Product Details
    • Company Profile

    Smooth Bore Covoluted PTFE Hose

    This PTFE hose refers to a highly specialized industrial hose engineered for conveying aggressive chemicals, high-purity fluids, or high-temperature media. Its core is constructed from PTFE (Polytetrafluoroethylene), a material renowned for its exceptional chemical resistance, wide temperature tolerance, and non-stick properties. The "Smooth Bore" feature indicates that the inner liner is seamless and flat, which minimizes pressure drop, prevents clogging, and allows for easy cleaning—critical for sanitary or precise transfer applications. The external "Convoluted" structure, with its distinct bellows-like folds, provides excellent flexibility, allowing the hose to bend and route easily in tight spaces without kinking, while also offering superior resistance to mechanical stress and vibration. This combination makes it an ideal solution for demanding sectors such as chemical processing, pharmaceuticals, food and beverage, and semiconductor manufacturing.



    Tube: PTFE

    Reinforcement: SS304/316 wire

    Temperature: -65C to 260C

    Transfer Medium: High temperature oil/water, steam, strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.


    ID. (inch)ID.(mm)OD (mm)Thickness (mm)WP (bar)BP (bar)Min. Bend Radius (mm)
    3/8"1013.51.49036025
    1/2"1316.61.68333328
    5/8"1620.51.87530050
    3/4"1923.727429663
    1"25.430.825923690
    1-1/4"3237238150150

    Application:


    Our Smooth Bore Convoluted PTFE Hose is engineered for demanding applications. It features a non-stick, chemically inert PTFE core with a seamless inner wall to ensure uncontaminated flow and easy cleaning. The exterior convolution provides superior flexibility for easy routing in tight spaces. Ideal for transferring aggressive chemicals, high-purity fluids, and high-temperature media across various industries.
