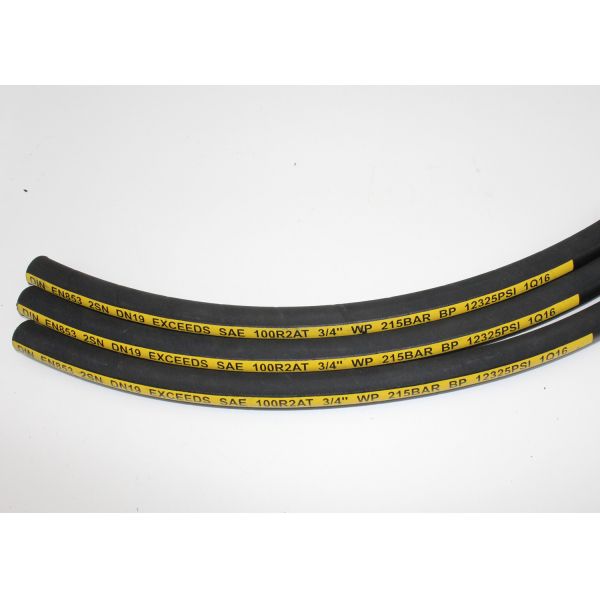

    SAE J517 100 R2AT 3/4" 19MM ID High Pressure Hydraulic Hose 215 Bar Working Pressure

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : SAE J517 100 R2 AT
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram
    Supply Ability : 30,000m per month
    Delivery Time : Within 30 days after we receive advance payment
    • Product Details
    • Company Profile

    SAE J517 100 R2AT 3/4" 19MM ID High Pressure Hydraulic Hose 215 Bar Working Pressure


    SAE J517 100 R2AT 3/4" 19MM I.D. High Hydraulic Hose with 215 Bar Working Pressure


    Description:


    Standard: SAE J517


    Construction

    Tube: NBR synthetic rubber.
    Reinforcement: Two high-tensile steel wire braided.
    Cover: NBR oil and weather resistant synthetic rubber.


    Temperature: -40℃ - +100℃


    Color: Black, Grey, Blue, etc.


    Standard length: 100m/roll


    Ferrule: 03310 or 00210 for SAE 100 R2 AT

    Fitting: 1 series crimping fitting


    Specification of R2.pdf

    Specifications:


    Double Wire Braided Reinforced Hydraulic Rubber Hose


    Item CodeInner DiameterOuter DiameterWorking PressureBurst PressureLengthMeasurementWeight
    inchmmmmbarpsibarpsimcbm/rollkg/m
    R2-053/164.812.341460001655240001000.0400.32
    R2-061/46.415.540058001600232001000.05140.37
    R2-085/168.016.535050751400203001000.06120.412
    R2-103/89.519.233047851320191401000.07840.53
    R2-131/212.721.827539881100159501000.08330.64
    R2-165/816.025.52503630100114520500.0740.77
    R2-193/419.029.5215312086012480500.08330.96
    R2-25125.438.116524006629600500.14451.35
    R2-321 1/432.048.012518205027280200.2092.05
    R2-381 1/238.055.09013103615240200.25092.511
    R2-51250.868.68011603204640200.3796

    3.165




    We have several ways of hydraulic hose packaging for our customers.


    1. Colorful poly stripes (normal packing)


    1. Reel


    3. Customized carton hose assembly



    We can do the following tests:


    1. Material test.

    2. Working pressure test
    All the hoses need to do this test before shipment.

    3. Burst pressure test

    4. Impulse test

    1 wire and 2 wire braided hose pass the impulse testing of 200,000 times; 4 wire spiral hose pass the impulse testing of 400,000 times.
