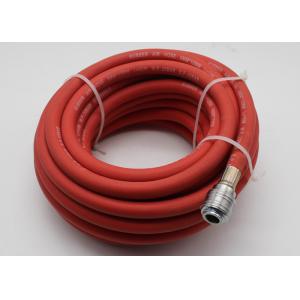

    ID 8mm L 10m WP 20 BAR BP 60 BAR Rubber Air Hose , 1/4" BSP Quick Release Connectors

    Ask Lasest Price
    Brand Name : PASSION
    Model Number : ID 5/16"
    Certification : ISO 9001-2008, CE
    Price : Negotiated
    Payment Terms : Western Union, MoneyGram, L/C, T/T, PayPal
    Supply Ability : 100,000 pcs per month
    Delivery Time : 30 days for 20' FCL
    • Product Details
    • Company Profile

    ID 8mm L 10m WP 20 BAR BP 60 BAR Rubber Air Hose , 1/4" BSP Quick Release Connectors


    ID 8mm L 10m WP 20 BAR BP 60 BAR Rubber Air Hose , 1/4" BSP Quick Release Connectors


    Exported to: British, Portugal, etc.


    Hose Structure: Tube: NR& SBR synthetic rubber.


    Reinforcement: High tensile polyester fiber braided.


    Cover: NR & SBR or SBR& EPDM synthetic rubber.


    Temperature resistance Range: -30℃ - +70℃


    Color Choice: Red, Yellow, Black etc.


    Hose Application: Mainly used for conveying of air for air compressor machine.


    Length: 10m, 20m, etc


    Specification of hose:

    Item code

    Inner Diameter

    Outer Diameter

    Working Pressure

    Burst Pressure

    Length

    Weight

    inch

    mm

    mm

    bar

    psi

    bar

    psi

    m/pc

    kg/pc

    HPR1

    1/4"

    6

    12

    20

    300

    60

    900

    10

    1.7

    HPR2

    1/4"

    6

    12

    20

    300

    60

    900

    20

    3.3

    HPR3

    5/16"

    8

    15

    20

    300

    60

    900

    10

    2.1

    HPR4

    5/16"

    8

    15

    20

    300

    60

    900

    20

    4.1

    HPR5

    3/8"

    10

    17

    20

    300

    60

    900

    10

    2.5

    HPR6

    3/8"

    10

    17

    20

    300

    60

    900

    20

    4.9


    Specification of fittings:

    German or Universal 3 in 1 quick coupler and plug.


    Competitive Advantage of PASSION Hose:

    PASSION® Rubber air hose assembly, is popular in Europe market, made of non-recycled rubber, according to ISO-2398 standard.

    Hangzhou Paishun can crimp the specified fittings and quick released coupling on the rubber air hose.

    If you have some special request of size, Hangzhou Paishun can also customize for you.
