Black Heavy Duty Air Hose ID 1" To 2" , High Pressure Hose Cloth
Wrapped Surface
Specifications:
Item code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m | |
HPR1 | 1" | 25 | 36 | 20 | 300 | 60 | 900 | 50 | 0.1 | 0.85 |
HPR2 | 1-1/4" | 32 | 43 | 10 | 150 | 30 | 450 | 50 | 0.16 | 1.38 |
HPR3 | 1-1/2" | 38 | 50 | 10 | 150 | 30 | 450 | 50 | 0.2 | 1.70 |
HPR4 | 2" | 51 | 65 | 10 | 150 | 30 | 450 | 50 | 0.5 | 2.20 |
Description:
Structure: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: Fabric surface NR & SBR synthetic rubber.
Temperature: -30℃ - +80℃
Color: Black, etc.
Standard length: 50m.
Applications:
Mainly used for conveying of air or water.



Competitive Advantage:

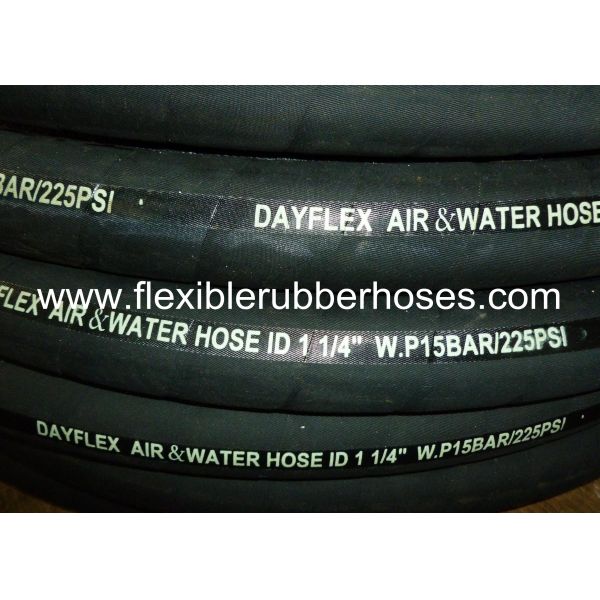

PASSION® Rubber air water hose, with cloth wrapped surface, is
popular in South America market, made of non-recycled rubber,
according
to ISO-2398 standard. Hangzhou Paishun can crimp the specified
fittings and quick released coupling on
the rubber air water hose. If you have some special request of
size, Hangzhou Paishun can also customize for you.
|
